    Home >> Finished Product Display >> Assembly inspection process line solution for TRB

    生产线分类

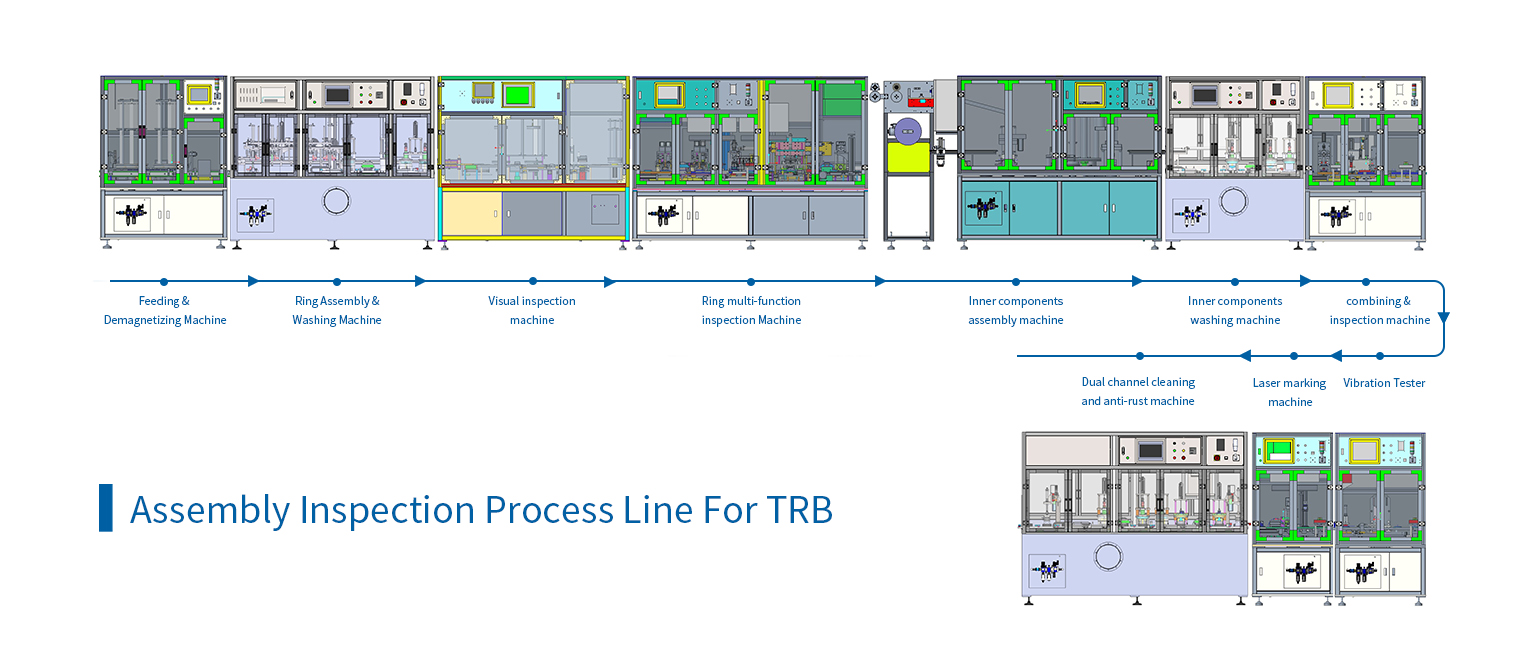

    Assembly inspection process line solution for TRB
    Assembly inspection process line solution for TRB Assembly Inspection Line For DGBB Assembly Inspection Line For SRB Auto assembly and inspection series equipment for double row WDGBB

    Assembly inspection process line solution for TRB

    • Feeding & Demagnetizing Machine

      Feeding & Demagnetizing Machine

      Serial number：NO.1

      Machine Code:GD01-T1

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Loading buffer and demagnetization of inner and outer ring

    • Ring Assembly & Washing Machine

      Ring Assembly & Washing Machine

      Serial number：NO.2

      Machine Code:GD01-T2

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Ultrasonic cleaning of inner and outer rings

    • Visual inspection machine

      Visual inspection machine

      Serial number：NO.3

      Machine Code:GD01-T11

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Image detection of inner and outer rings

    • Ring multi-function inspection Machine

      Ring multi-function inspection Machine

      Serial number：NO.4

      Machine Code:GD01-T3

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Defect detection and dimension measurement of inner and outer rings

    • Inner components assembly machine

      Inner components assembly machine

      Serial number：NO.5

      Machine Code:GD01-T4

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Inner component assembly, riveting, image inspection, weighing inspection

    • Inner components washing machine

      Inner components washing machine

      Serial number：NO.6

      Machine Code:GD01-T5

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Cleaning and drying of inner components of tapered bearings

    • Combining & inspection machine

      Combining & inspection machine

      Serial number：NO.7

      Machine Code:GD01-T6

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Cone inner component cage series momentum detection, outer ring combining, assembly height detection

    • Vibration Tester

      Vibration Tester

      Serial number：NO.8

      Machine Code:GD01-T7

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Automatic vibration measurement and marking of tapered bearings

    • Dual channel cleaning and anti-rust machine

      Dual channel cleaning and anti-rust machine

      Serial number：NO.9

      Machine Code:GD01-T8

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Demagnetization and cleaning of inner and outer rings of tapered bearings

    • Laser marking machine

      Laser marking machine

      Serial number：NO.10

      Machine Code:GD01-T9

      Applicable Range (OD):47-100mm

      Cycle Time:8-10S

      Main Features:Automatic marking of single row tapered bearings
